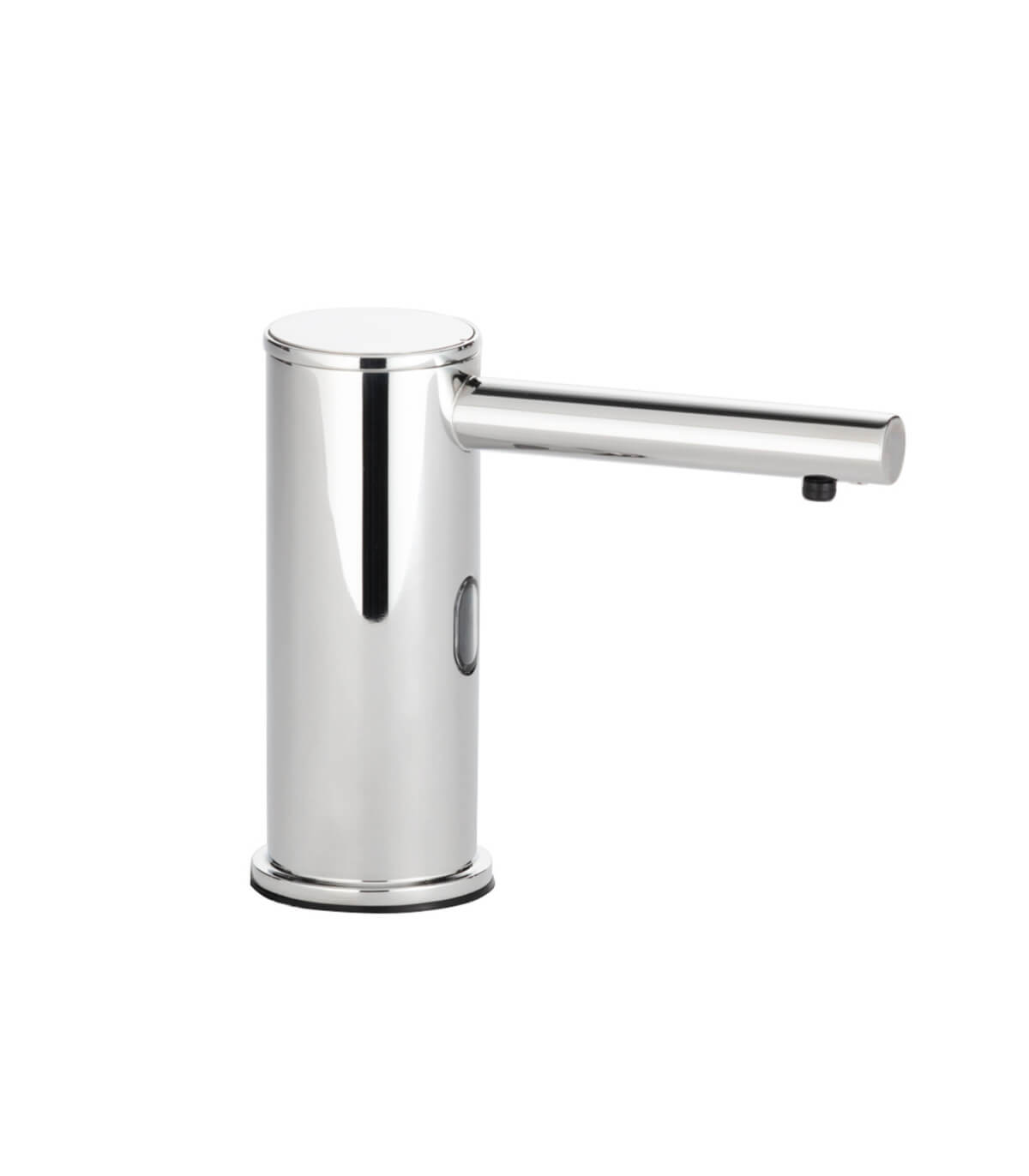

Automatic multi-feed soap dispensing system
B-820
Polished chrome, 304 stainless
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
SPECIFICATIONS :

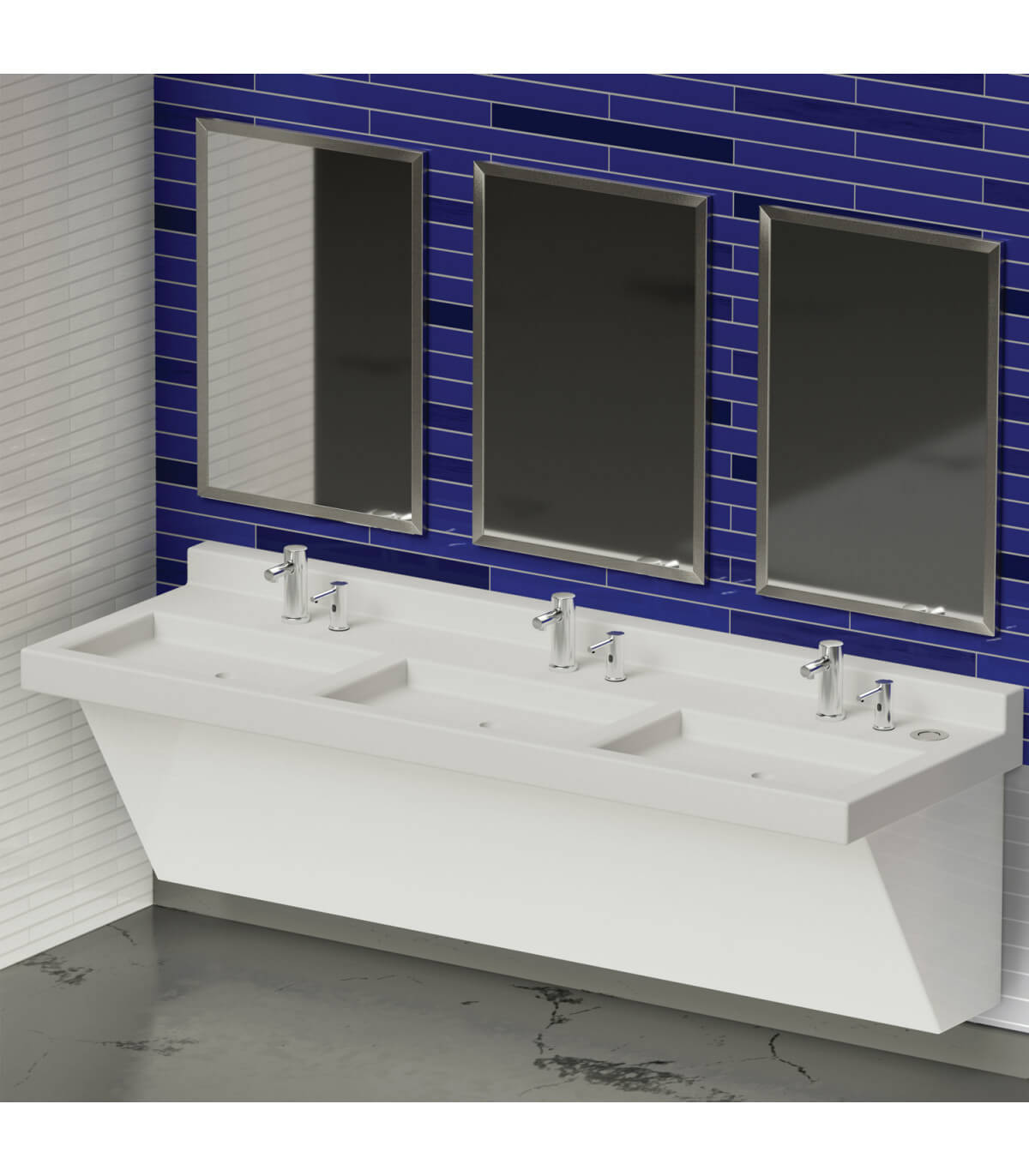

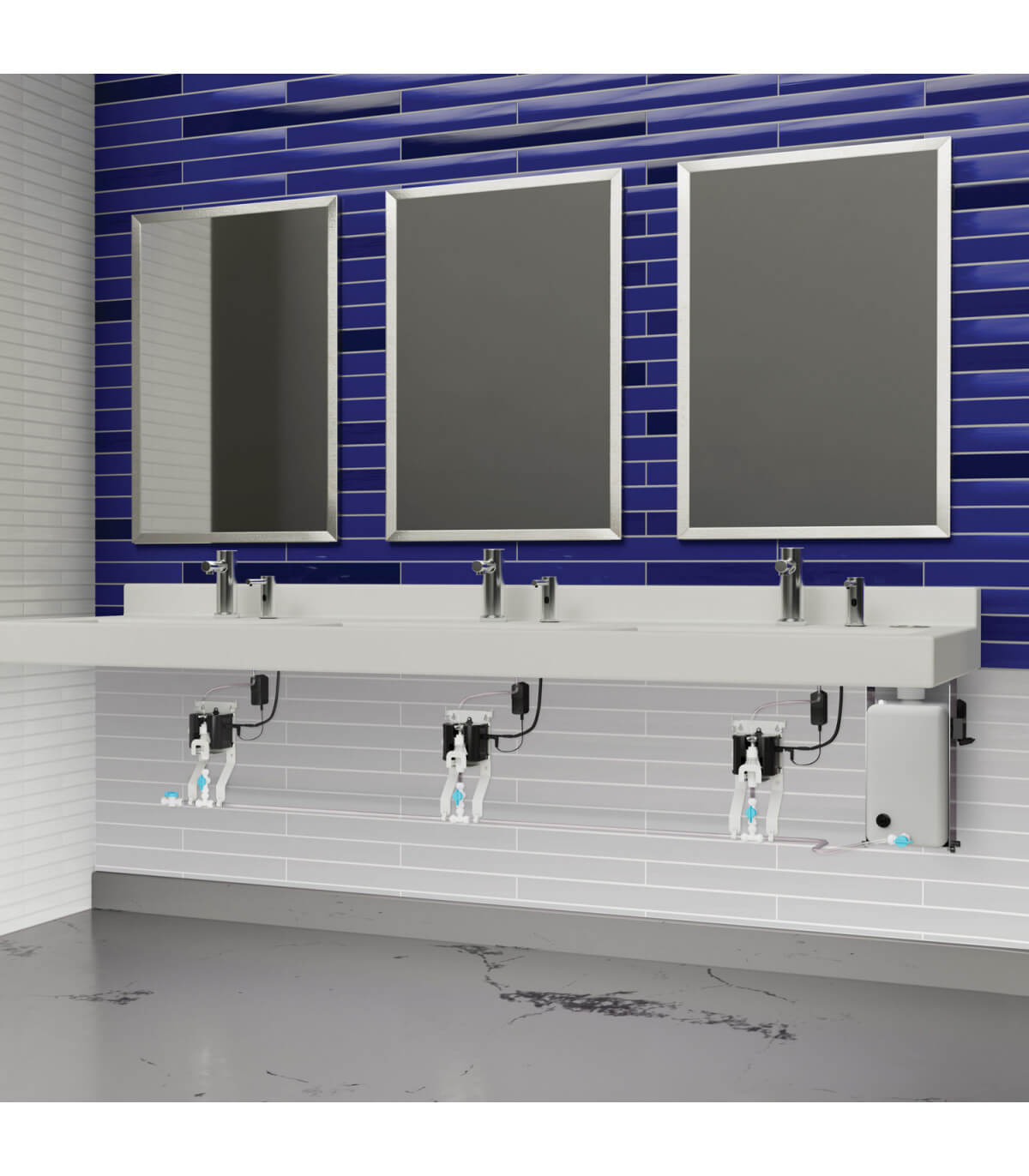

Designed for high traffic facilities, the Automatic Multi-Feed Soap Dispensing System feeds up to six automatic foam or liquid soap dispensers.

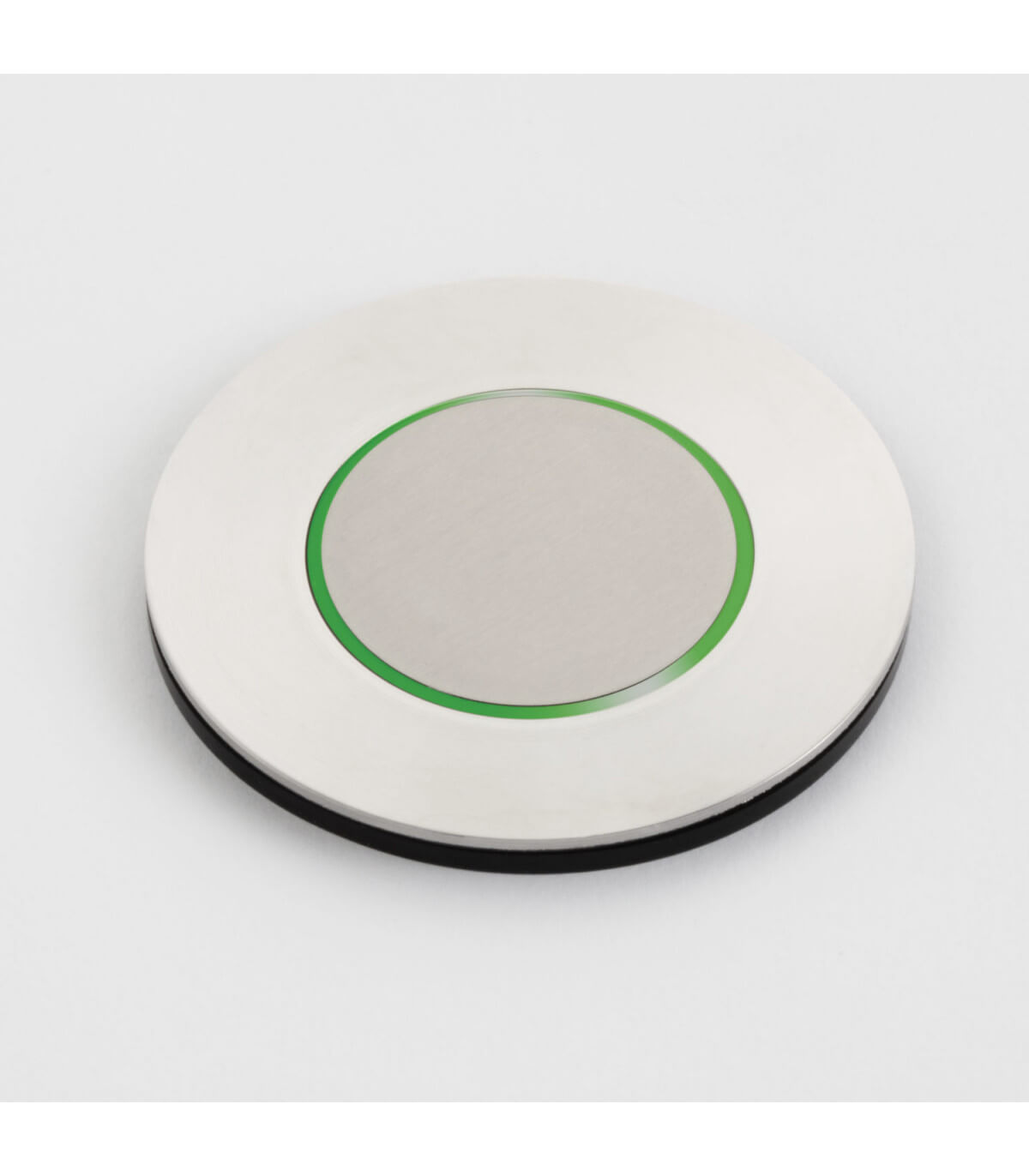

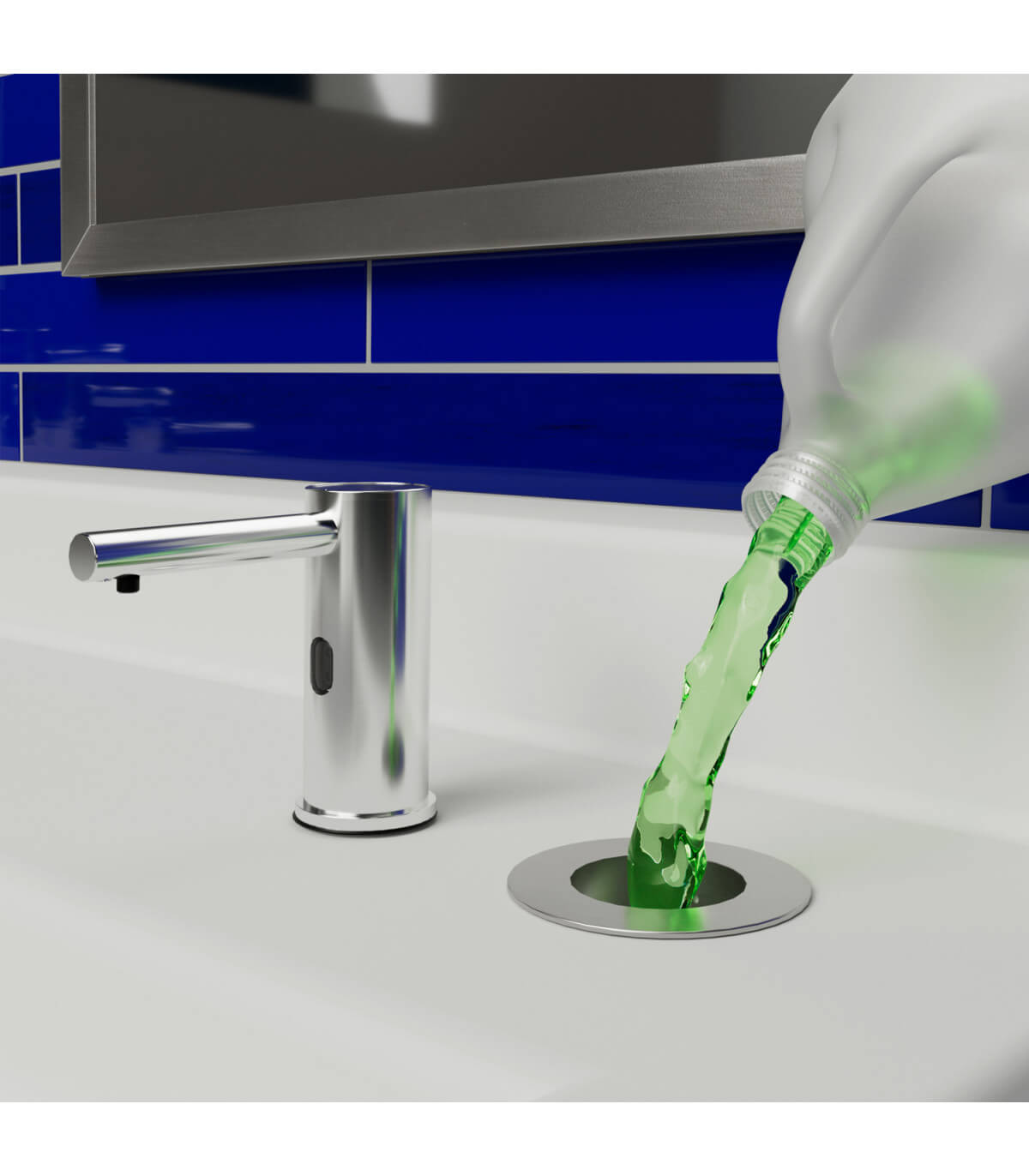

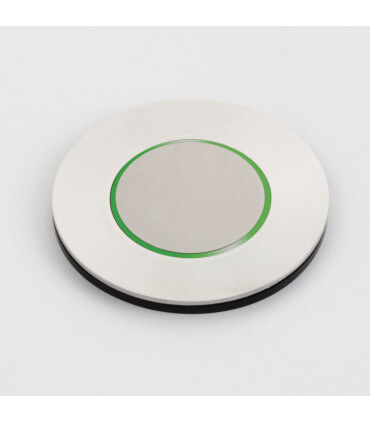

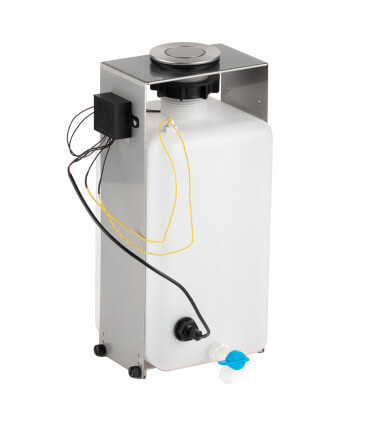

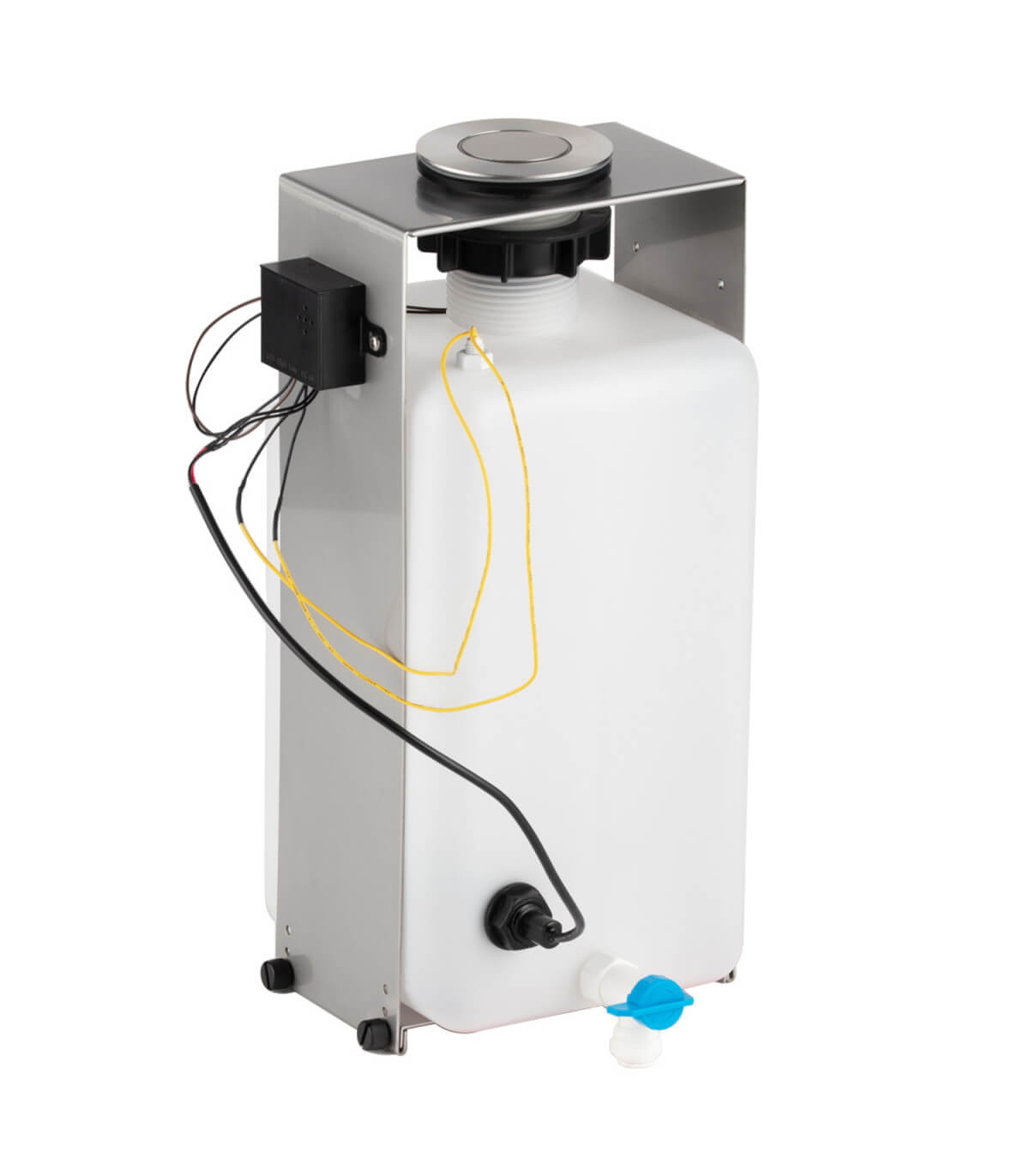

The top-fill large capacity Multi-Feed Soap Reservoir has a 6-liter tank that eliminates frequent refilling of single dispensers, reducing maintenance time and cost; Uses bulk soap for significant cost savings of 80% or more over proprietary cartridges; Makes maintenance easy with LED indicators on the fill port that lets maintenance know when service is needed.

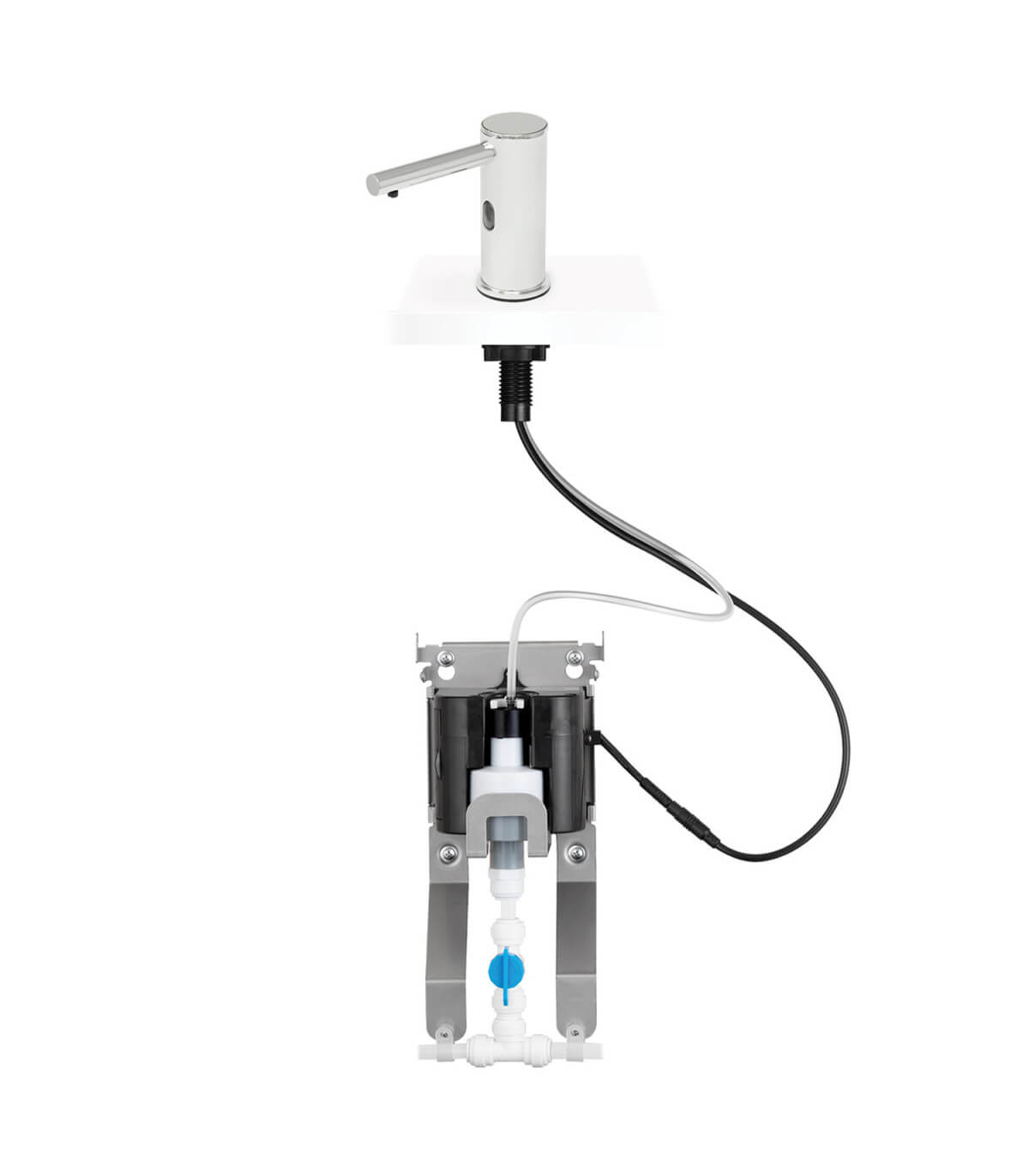

The Automatic Soap Dispenser’s touch free sensor reduces cross-contamination risk to patron and is available for foam or liquid soap; Polished chrome, 304 stainless steel spout, reflects design continuity with other restroom accessories and plumbing fixtures.
Select the reservoir, then select either foam or liquid soap.
B-820 Multi-Feed Soap Reservoir and
B-820-248 Foam Soap Dispenser or
B-820-258 Liquid Soap Dispenser
Powered by 6V AC Adapter that is included with each Multi-Feed Soap Reservoir and Soap Dispenser.
Optional Battery Pack available, order Part No. 824-241. For outlets not compatible with U.S. plugs, order Part No. 3974-58.
Designer's Notes :
Multi-Feed Soap Reservoir and Soap Dispensers are ordered and furnished separately.
Soap dispenser fits 1" diameter counter hole.
Reservoir fill port requires 2 3/8" diameter counter hole.
Maximum mounting thickness is 1 1/2".
Data sheet
- Reference
- B-820
- Materials
- In stainless steel
- Finish
- Bright Chrome
- Capacity (in liters)
- 6
- Installation type
- Countertop mounted
