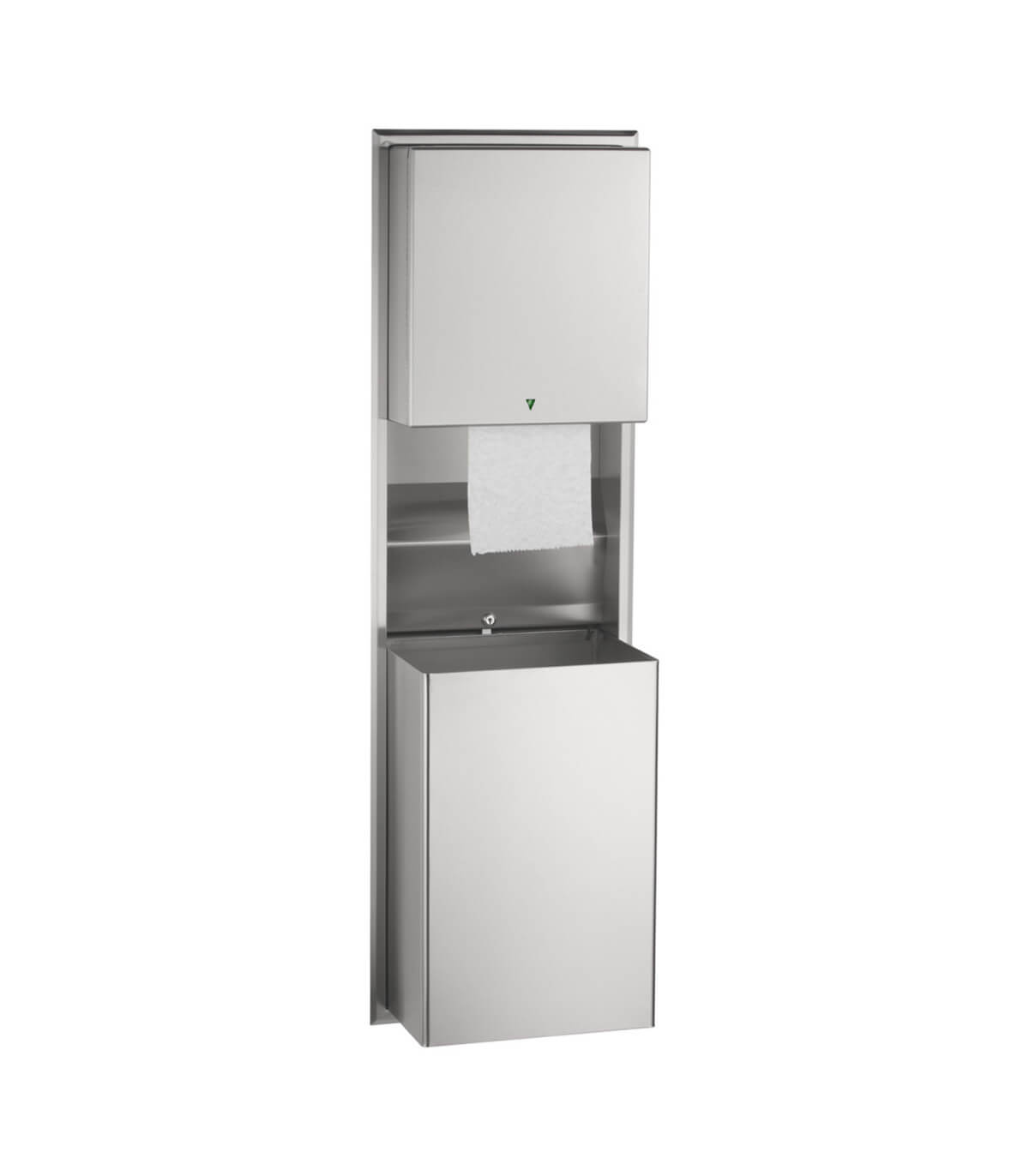

Recessed convertible automatic, universal roll towel dispenser equipped with intuitive LED light/waste receptacle
B-39747
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
SPECIFICATIONS :
Unit includes convertible automatic universal, roll paper towel dispenser with intuitive, user-friendly light directs users to towel activation zone and 18-gallon (68.0-L) waste receptacle.
Satin-finish stainless steel.
Seamless beveled flange.
Dispenses universal, 1-1/2″ to 2″ (38 to 51mm) diameter core, up to 8″ (205mm) wide, up to 8″ (205mm) diameter rolls, 800 ft (244m) long, plus 3-1/2″ (90mm) diameter stub roll with automatic transfer.
Removable waste receptacle is locked into cabinet.
Unit can be powered by AC adapter or 4 Alkaline "D" Cells (not included).
Field conversion made easy without replacing existing cabinets in wall.
Data sheet
- Type of product
- Combined : Paper towel dispenser and waste receptacle
- Reference
- B-39747
- Product width (in mm)
- 435
- Product height (in mm)
- 1420
- Depth (in mm)
- 205
- Installation type
- Recessed
