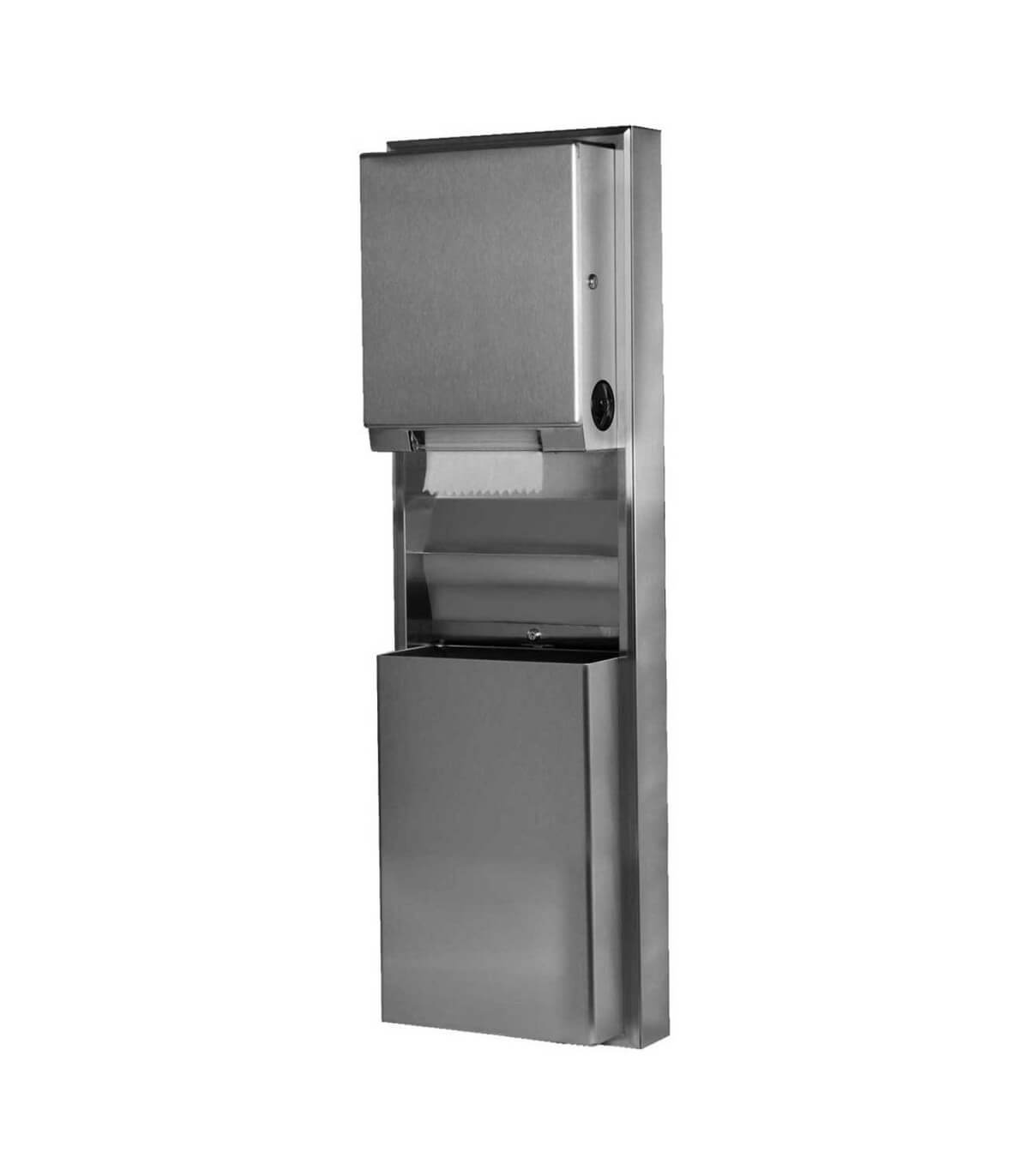

Surfaced-mounting convertible paper towel dispenser/waste receptacle
B-39619
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
SPECIFICATIONS :
Unit includes convertible universal, roll paper towel module and 12-gallon (45.5-L) waste receptacle.
Satin-finish stainless steel.
Seamless beveled flange.
“Touch-free” pull-towel mechanism dispenses 12″ (305mm) length per pull of universal roll paper towels.
Accommodates 8″ (205mm) wide, up to 8″ (205mm) diameter rolls, 800 ft (244m) long, plus 3-1/2″ (90mm) diameter stub roll with automatic transfer.
Removable waste receptacle is locked into cabinet.
Skirt for surface-mounting.
Field conversion made easy without replacing existing cabinets in wall.
Interchangeable with :
B-368-60 : Interchangeable Receptacle, 18-gal. (68.0-L).
B-3974-250 : Convertible Automatic, Universal Roll Paper Towel Dispenser Module Equipped with LED Light.
B-3944-52 : Folded Towel Dispenser Module.

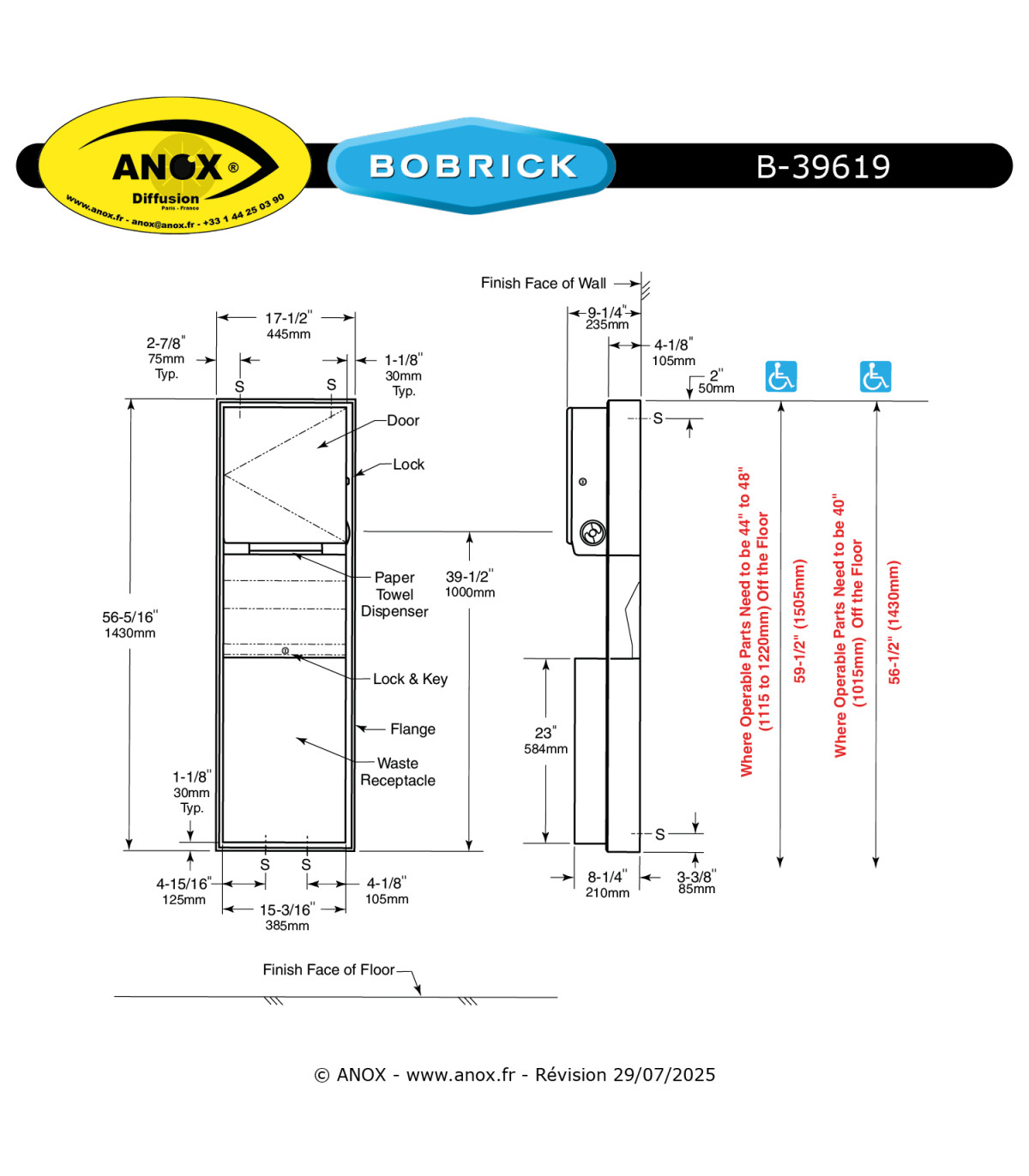

Data sheet
- Type of product
- Paper towel dispenser and waste receptacle
- Product width (in mm)
- 445
- Product height (in mm)
- 1430
- Depth (in mm)
- 235
- Installation type
- Wall-mounted
