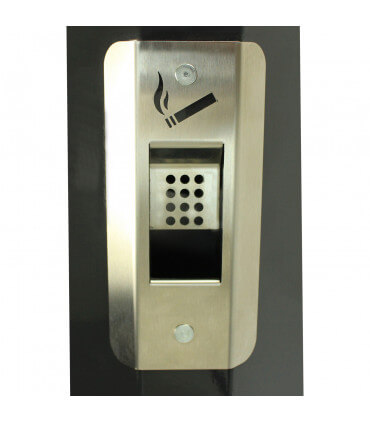

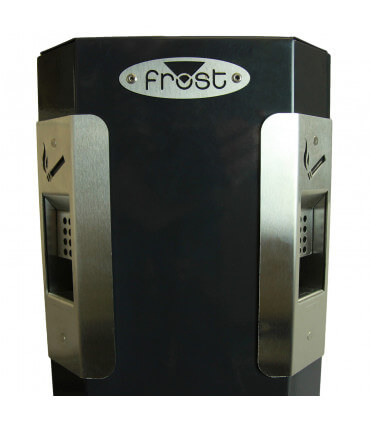

Heavy duty outdoor pedestal ashtray
FP-920
Women's clothing size
| Size | XS | S | M | L |
|---|---|---|---|---|
| Euro | 32/34 | 36 | 38 | 40 |
| USA | 0/2 | 4 | 6 | 8 |
| Bust(in) | 31-32 | 33 | 34 | 36 |
| Bust(cm) | 80.5-82.5 | 84.5 | 87 | 92 |
| Waist(in) | 24-25 | 26 | 27 | 29 |
| Waist(cm) | 62.5-64.5 | 66.5 | 69 | 74 |
| Hips(in) | 34-35 | 36 | 37 | 39 |
| Hips(cm) | 87.5-89.5 | 91.5 | 94 | 99 |
With your arms relaxed at your sides, measure around the fullest part of your chest.
Measure around the narrowest part of your natural waist, generally around the belly button. To ensure a comfortable fit, keep one finger between the measuring tape and your body.
SPECIFICATIONS :
SITE LOCATION :
With its all steel construction of heavy HRS, and RAL super durable TGIC-free polyester powder coated rust proof paint, the pedestal ashtray is ideal for any site location. Perfect for use at office buildings, schools, retail outlets, parks, sports facilities, and other commercial properties requiring maximum durability and attractive looks.
FEATURES :
Easy access large capacity cigarette receptacle
Keyed tumbler lock to prevent theft
Tested to survive harsh summer and winter weather
Concealed mounting screw locations for anchors
Attractive black and stainless steel finish
CAPACITY :
1,500-1,800 cigarettes (6 litres, 1.6 US gal., 1.3 Imp gal.)
MATERIALS
Main Body: 18 gauge hot rolled steel
Base: 12 gauge hot rolled steel
Grill Inlets and Frame: 18 gauge type 304 stainless steel, brushed finish
Complete Product: Body and base finished with RAL super durable TGIC-free polyester powder coating provides rust proof finish
PRODUCT DIMENSIONS :
Pedestal: 21.6cm W x 105.4cm H x 13.3cm D (8.5” W x 41.5” H x 5.25” D)

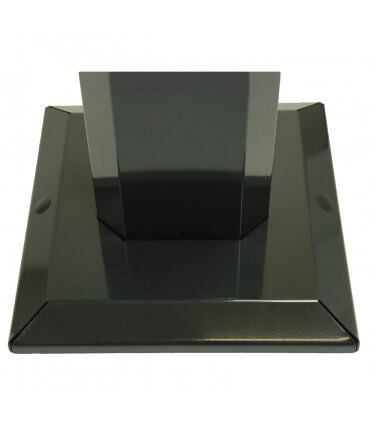

Base: 36.3cm W x 3.8cm H x 36.6cm D (14.3” W x 1.5” H x 14.4” D)

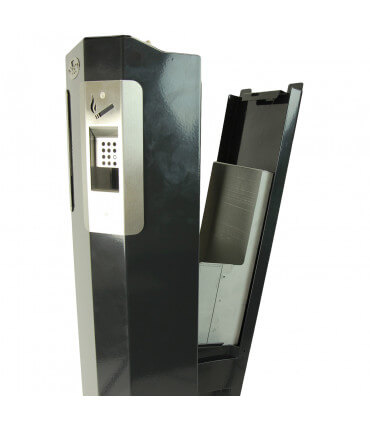

Removable Receptacle: 15.2cm W x 47.6cm H x 8.6cm D (6” W x 18.75” H x 3.4” D)
Hole Dimensions: 0.88cm (0.35”) for both hole diameters
PRODUCT WEIGHT :
15.0 kg (33 lbs)
INSTALLATION :
Holes provided for anchor mounting. Easy installation into any location. Use Allan key (provided) and hardware to secure base to body. Allan bolts (4) and lock washers (4) included. Use base as a template to mark mounting hole locations. Ensure a minimum distance of 30.5cm (12”) when mounting close to a wall. Use hole plugs (2) provided to cover mounting hole locations.
